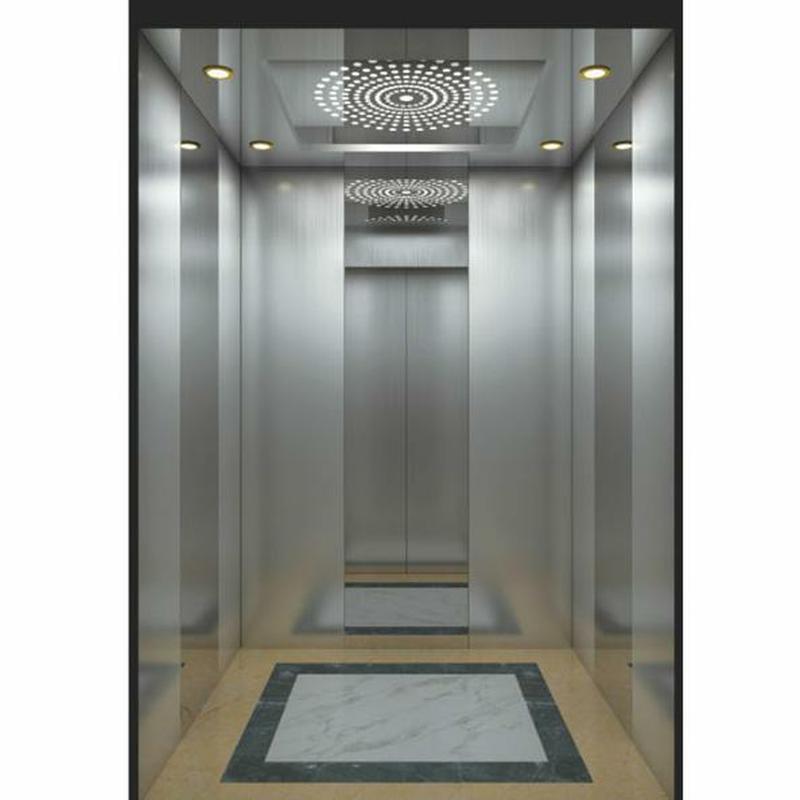

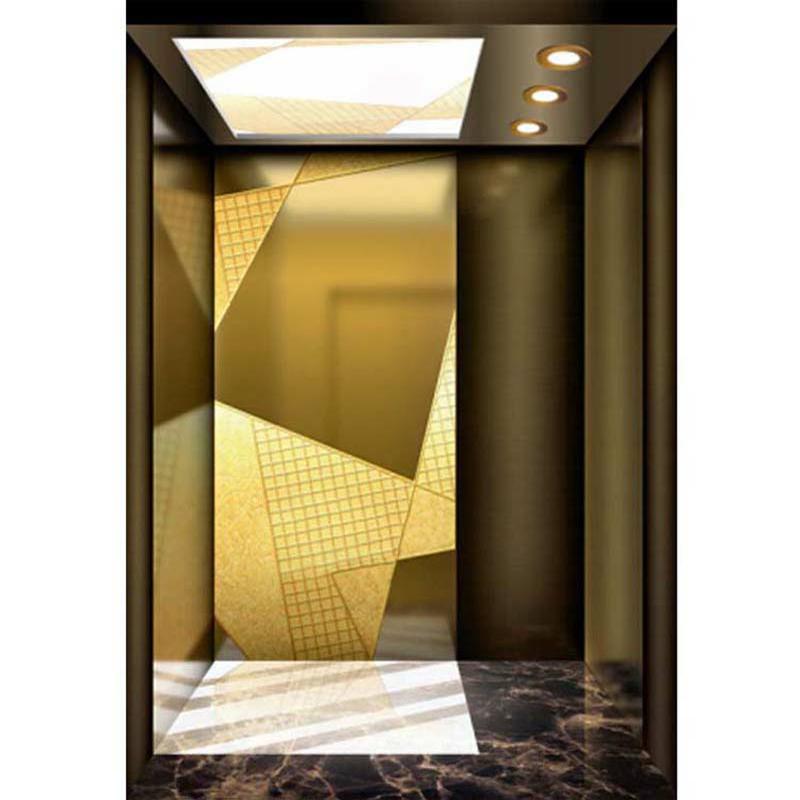

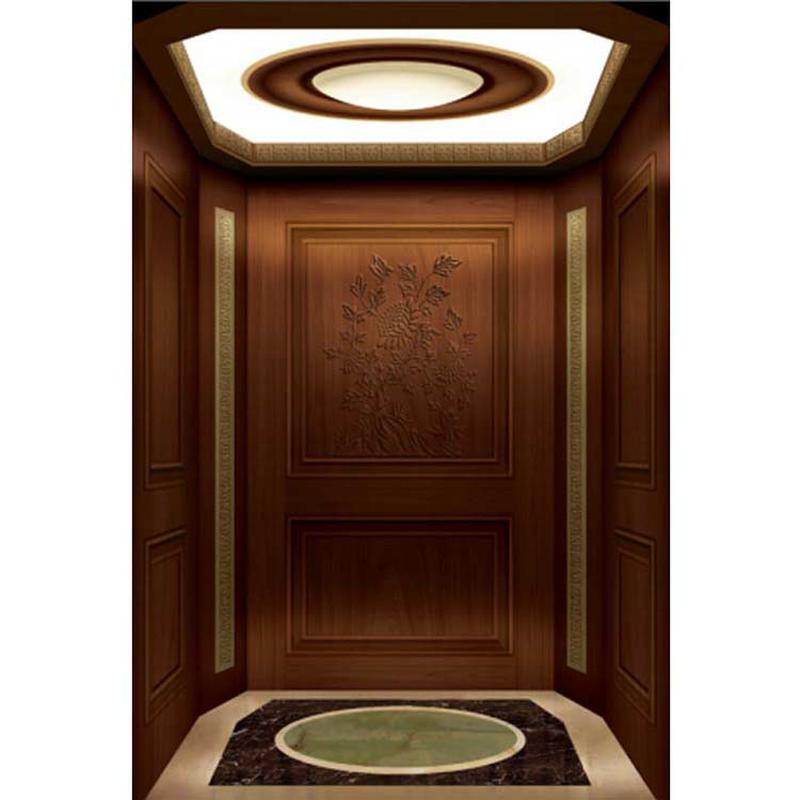

Stainless Steel Elevator Cabin: Transparent Style; Round Cabin;
Description:
The cabin is generally composed of cabin bottom, cabin wall, cabin roof, cabin door and other main components. Among them, the cabin wall, cabin roof and cabin door are mostly decorated with stainless steel; The door cover is also mostly made of stainless steel.
Applications:
As the largest component in the elevator cabin, the stainless steel decorative plate has an important influence on the overall style of the cabin. Common surfaces include mirror, hairline, etching, etc. at the same time, PVD coating and anti-fingerprint treatment can be done to better protect the surface.
Application
SUNSONG sightseeing elevator cabins are crafted with premium stainless steel and diverse decorative materials, combining modern aesthetics with practical performance. The cabin features a stylish design and durable materials, ideal for high-end office buildings, hotels, shopping malls, and tourist attractions. Transparent or semi-transparent cabin walls with various surface treatments create a comfortable and safe riding experience.
1.We can make cabins for Passenger Lift, Panoramic Lift, Bed Lifts and Freight Lifts as per our standard or customers' design;
2.Cabin Panels Material: painted panels, hairness stainless steel , mirror stainless steel or etching stainless steel;
3.Ceiling, handrail, and floor can be opitional.
| Item | Specification Range | Description |
|---|---|---|
| Load Capacity | 450kg – 1600kg | Suitable for various passenger loads |
| Speed | 1.0 m/s – 3.0 m/s | Adapted to different building heights and needs |
| Door Width | 800mm – 1100mm | Central opening design for easy entry and exit |
| Cabin Wall Material | Stainless steel (mirror, brushed, etched), titanium steel, wood veneer, glass | Multiple material options, customizable |
| Cabin Ceiling Material | Stainless steel, wood veneer, acrylic, LED lighting | Rich decoration options |
| Floor Material | PVC, marble | Wear-resistant and slip-proof for passenger safety |
| Handrail | Stainless steel tube, solid wood handrail | Combines aesthetics with functionality |
1. Material Grade: Use of SUS304 or SUS316 stainless steel with thickness ranging from 1.0mm to 2.0mm, known for excellent corrosion resistance and mechanical strength.
Surface Treatments: PVD (Physical Vapor Deposition) coating provides hardness above 2000 HV, greatly enhancing scratch resistance compared to untreated stainless steel。
Electroplating & Etching: Electroplated layers typically 0.5-1.0 micron thick improve surface gloss and corrosion protection. Chemical etching ensures consistent texture depth (10-20 microns) for superior tactile feel and aesthetic.
Durability: Tested to withstand salt spray tests over 720 hours (ASTM B117) without rusting, ensuring suitability for high-humidity environments.
2. Size Flexibility: Cabin dimensions customizable within ±5mm precision, suitable for various shaft sizes from compact lifts (1.0 m²) to large panoramic elevators (over 10 m²).
Material Options: Supports stainless steel variants, titanium-coated steel, tempered glass thickness 10-15mm for panoramic walls, and decorative wood veneers.
Color Choices: PVD coatings available in over 10 colors including classic gold, black, champagne, and rose gold with high color fastness (ISO 105-B02 rating 4-5).
Decorative Styles: Supports combination finishes such as brushed and mirror, etched and PVD, enabling bespoke design solutions tailored to brand or project themes.
3. Safety Standards Compliance: Meets or exceeds EN81 and ASME A17.1 elevator safety codes, ensuring structural integrity and passenger safety.
Anti-slip Flooring: PVC or marble floor surfaces achieve COF (Coefficient of Friction) >0.6 per ASTM C1028, reducing slip risks in wet conditions.
Ergonomic Handrails: Handrails designed with diameter 30-40mm, height 900-1000mm from floor, following ergonomic standards for comfortable grip and support.
Fire Resistance: Materials comply with Class B1 flame retardant rating per GB8624, ensuring fire safety requirements in public buildings.
4. Fingerprint Resistance: PVD coated surfaces reduce visible fingerprints by up to 80% compared to standard stainless steel.
Stain Resistance: Electroplated and PVD coatings minimize staining from acids, oils, and cleaning agents, enabling easy wiping with standard detergents.
Cleaning Cycle: Typical cleaning intervals extend from daily to weekly, saving 30%-40% in labor and maintenance costs over product lifetime.
Longevity: Surface treatments maintain appearance and function for 5+ years under normal usage without need for rework or repaint.
5. Smart Control Panels: Integrate multi-language LCD displays with touch control, supporting real-time elevator status and emergency call functions.
LED Lighting: High-efficiency LED panels with color temperature 3500-4500K, lumen output 300-500 lm/m², adjustable brightness for energy saving and passenger comfort.
Ventilation Systems: Silent fans providing 20-40 m³/h airflow to maintain fresh air circulation within the cabin.
Additional Options: Emergency lighting, speaker systems, mirror panels, and customizable branding decals available.
View Product Features and Custom Options
1. Commercial Office Buildings
Modern office buildings demand elevator cabins with high standards for aesthetics and durability. SUNSONG sightseeing elevator cabins use premium stainless steel and refined surface treatments to ensure long-lasting shine and easy maintenance, ideal for high-traffic environments. Smart LED lighting and quiet ventilation enhance passenger comfort, while central opening doors allow smooth flow of people. Customizable dimensions and decoration options help create a professional, upscale building image.
2. High-end Hotels and Resorts
Luxury hotels and resorts require elevator cabins that deliver exceptional design and comfort. Our cabins support a variety of decorative materials such as wood veneer, acrylic panels, and customizable LED ambient lighting to align with brand style and interior design themes. Fingerprint-resistant and stain-proof coatings keep cabins looking pristine. Spacious layouts and ergonomic handrails provide guests with a safe and premium riding experience.
3. Shopping Centers and Complexes
Elevators in commercial complexes face heavy daily use and require materials that resist wear and are easy to clean. SUNSONG cabins use scratch-resistant PVD-coated stainless steel and anti-slip flooring to significantly reduce maintenance costs. Transparent or semi-transparent glass walls increase spatial openness and visual appeal, attracting customers’ attention. Intelligent control panels facilitate easy operation and efficient crowd management.
4. Tourist Sightseeing Elevators
Tourist elevators emphasize panoramic views and passenger safety. Our sightseeing cabins feature high-strength tempered glass to ensure wide visibility while maintaining safety. The panoramic design combined with LED lighting and comfortable ventilation offers visitors an enjoyable riding experience. Anti-slip flooring and adherence to international safety standards guarantee safe operation in diverse weather and environmental conditions.
5. Hospital Bed Elevators and Special-use Elevators
Hospital bed elevators require large cabin dimensions to accommodate stretchers and medical staff. SUNSONG cabins support customizable wide door openings and barrier-free designs to meet strict medical requirements for space and accessibility. Easy-to-clean materials with antibacterial coatings ensure hygiene and safety. Quiet operation minimizes noise, enhancing patient comfort.
Customize Your Elevator Cabin for Your Project
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
